Single Carrier

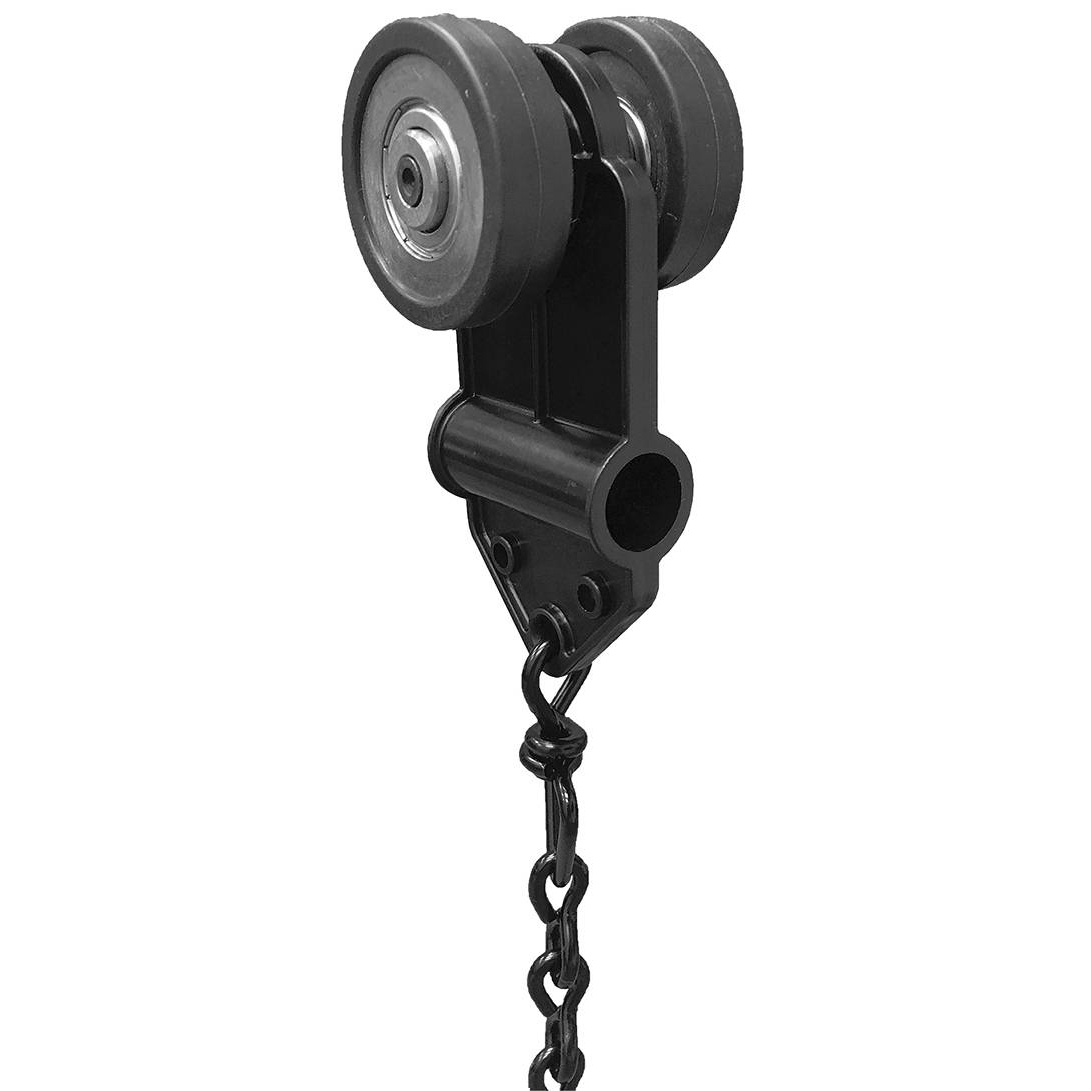

At iStudio Projects, our IWEISS Channel Track Black Single Carrier (Part # IWC18) is a heavy-duty curtain carrier engineered for smooth, reliable performance in straight Channel Curtain Track systems. Built with two Performance Thermal Plastic Rubber (TPR) wheels featuring shielded ball bearings and rivet attachment, housed in a durable black nylon body, the IWC18 is designed to handle heavier loads than standard carriers — rated at 20 lbs per carrier on 12″ spacing. Compatible with 3/16″ through 1/2″ rope, this carrier is suitable for bi-part and one-way draw systems as well as walk/draw operation. A swivel hook and 6″ trim chain provide flexible, twist-free curtain attachment with adjustable drop height. Compact at 2″w x 11-1/2″h and weighing just 7.8 oz, the IWC18 delivers high load capacity and quiet, dependable curtain travel for professional stage installations.

Get a Quote

Product Description

The IWEISS Channel Track Single Carrier utilizes two TPR wheels and shielded ball bearings. It is designed to take a heavier load than standard carriers. This carrier is intended for use in a straight track with 3/16” through 1/2” rope for bi-part or one way draw, and is also appropriate for walk/draw operation.

N/A

  • Track Compatibility: Install the IWC18 Single Carrier on straight Channel Curtain Track only. This carrier is not designed for use on curved track sections.
  • Rope Compatibility: Compatible with rope diameters from 3/16″ through 1/2″. Select the rope size appropriate for the curtain system’s weight and draw requirements.
  • Load Rating: The rated load capacity is 20 lbs per carrier based on 12″ carrier spacing. Calculate the total curtain weight and distribute it across the number of carriers to confirm no individual carrier exceeds its rated capacity.
  • Carrier Spacing: Space carriers at a minimum of 12″ on center to achieve the rated 20 lb load capacity. Adjust spacing as needed based on the total curtain weight and system layout requirements.
  • Curtain Attachment: Attach the curtain to the swivel hook using the 6″ trim chain. Adjust the trim chain length to achieve the correct curtain drop height before finalizing the attachment. The swivel hook allows the curtain to hang freely without twisting during travel.
  • Operation Modes: Suitable for bi-part draw, one-way draw, and walk/draw operation. Confirm all associated pulleys and hardware are configured correctly for the intended draw direction and operation method.
  • Inspection: Periodically inspect the TPR wheels, shielded ball bearings, swivel hook, and trim chain for wear, damage, or loosening. Replace any carrier showing signs of wheel flat spots, bearing roughness, or body deformation to maintain safe and smooth curtain operation.
